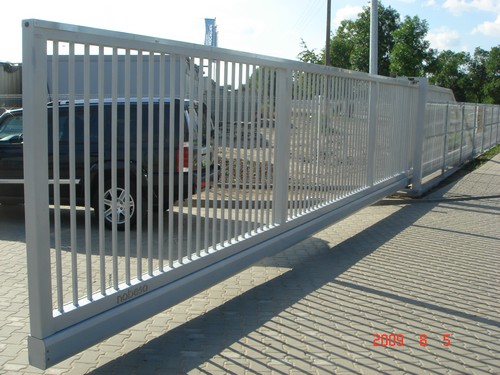

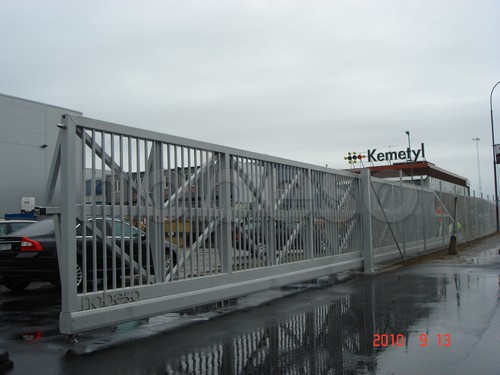

Cantilever Sliding Gates

SPECIFICATION

- Frame: RHS 80x80, 100x80, 120x100 , 120x120, 140x140 depending on the height and clearance
- Infill: vertical section 25x25, 30x20, 30x30, round tube fi 22m, weldmesh panels 8/6/6, weldmesh 358, steel sheet, trapezoid sheet
- Gate posts: square or rectangular steel profiles according to the structural design requirements with universal assembly flange for direct fence connection and control equipment.RHS sections examples: 100x100, 120x120, 140x140, 160x160, 200x200, 400x200 depending on the height and clearance
- Clearance - up to 15m in standar and up to 25 in special constrcution
- Height: up tp 5000mm in standard
- bottom rail: German precise Welser Profile 192x155mm (or special reinforced) depending on the clearance
- Construction type: single wing, double wing, crash-rated
- Surface protection: hot dib galvanized and powder coated to each RAL colour
- Long-term anti-corrosion protection
- Manual or automatic operated. In manual version all accessoires made of INOX (handles, locks)

OPTIONS

- electrical fence installation
- razor wire, concertina on extensions in gate axis or Y-extensions
- dragon tail on top 30mm or 50mm
- automation (electromechanical or hudraulic)
- safety equipement (rotating warning lamp, photocoells, card reader, code operator, induction loop, safety buffer, key switch, pushbutton switch, warning horn, emergency STOP, remote controls, semafor warning lights) - reflective warning tape
