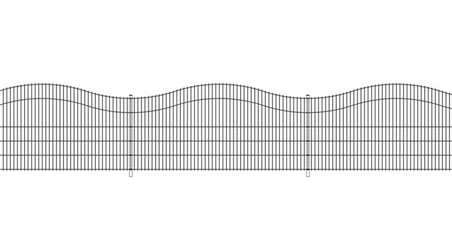

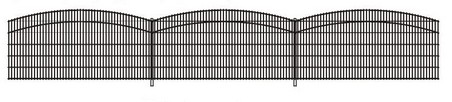

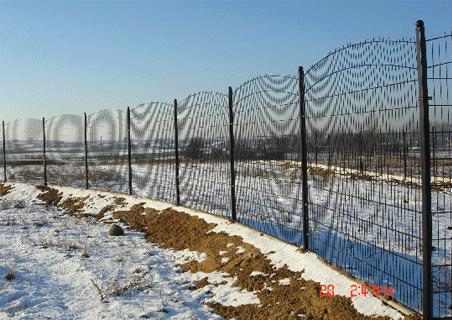

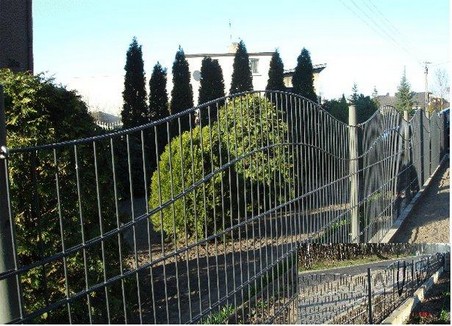

ARC and WaAVE Weldmesh Panels

A more cost effective rigid fence than its heavier family member, still more difficult to cut due to increased wire size than its single wire cousins, suitable where medium, upper medium levels of security and vandal resistance is required. Ideal for storage areas, sports, park boundaries, schools, business parks, retail areas, garden centres. 200 x 50mm mesh formed using twin 6(or 8)mm horizontal wires welded either side of a 5(or 6)mm vertical wire, posts set at 2.5m centres. Standard heights 1.20m up to 2.6m in one lift of panel, higher heights up to 8.00m as a norm can be achieved by multiple lifts.

SPECIFICATION

Steel rectangle section posts 60x40, 80x40, 80x60, 120x60 depending on the height
Panels with double horizontal bars
The width of eyes: 50 x 200mm
Vertical round bars: fi 6 mm (or fi 5)
Horizontal round bars: fi 8/8 mm (or fi 6/6)
The width of panels: 2500 mm
The heigh of panels: 430 - 2430 mm
Long-term anti-corrosion protection
