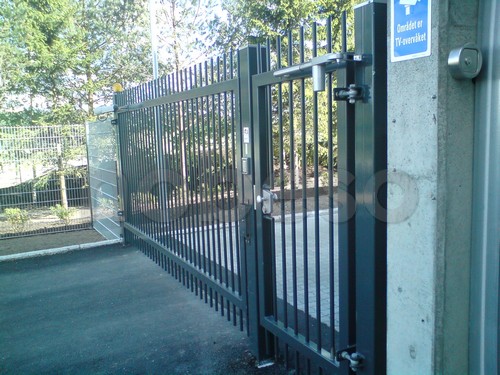

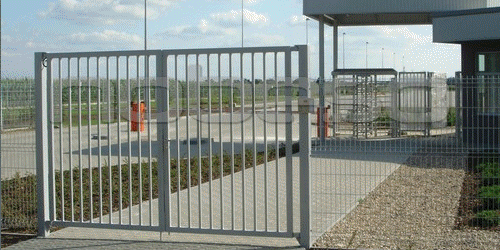

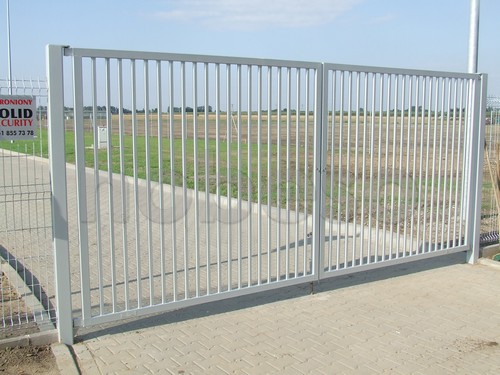

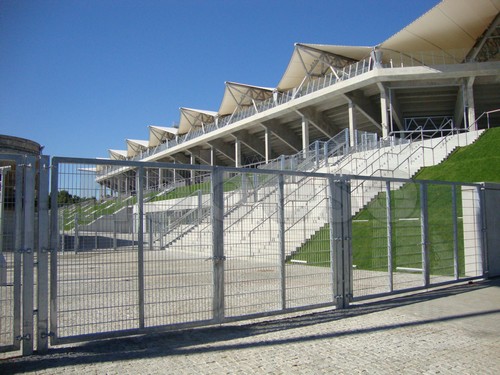

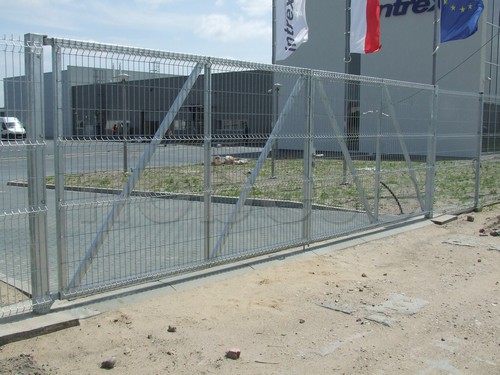

Security Hinged Gates

Traditional type of gate, up to 16m clerance between th epost in standard prodution and up to 25m (airports) in special series.

SPECIFICATION

- Frame: RHS 60x40, 60x60, 80x40, 80x60, 100x80 , 120x60 , 120x80 depending on the height and clearance
- Infill: vertical section 25x25, 30x20, weldmesh panels 8/6/6, weldmesh 358, steel sheet, trapezoid sheet
- Posts: 80x80, 100x100, 120x120, 140x140, 160x160, 200x200, 400x200 depending on the height and clearance
- Clearance - up to 16000mm in standard as trackless gate
- Height: up tp 5000mm in standard
- Construction type: single wing, double wing, bi-folding, crash-rated
- Surface protection: hot dib galvanized or/and powder coated to each RAL colour
- Long-term anti-corrosion protection
- Standard construction or bespoken
- Manual or electric operated. In manual version all accessoires made of INOX (hinges, handles, locks)

OPTIONS

- secured hinges possible for prisons,
- stop to the ground
- electrical fence installation
- dragon tail on top 30mm or 50mm
- razor wire, concertina on extensions in gate axis or Y-extensions
- actuators (underground or tubular, electromechanical or hudraulic)
- safety equipement (rotating warning lamp, photocoells, card reader, code operator, induction loop, safety buffer, key switch, pushbutton switch, warning horn, emergency STOP, remote controls, semafor warning lights)
